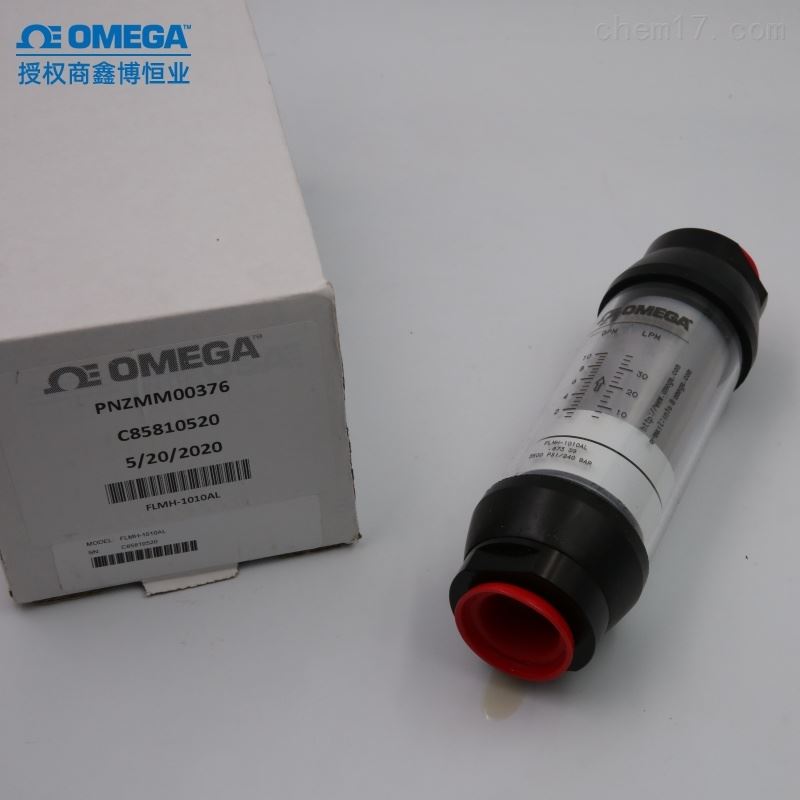

FLMH-1415AL流量計 美國omega

管路液體流量計
FLMH and FLMW Series

管路液體流量計

直讀標尺
范圍0.05至150 GPM
高壓力：3500 psi（銅、鋁）；6000磅（不銹鋼）
高溫：116 C（240 F°°）（標準）或204 C或316 C°°（400或600（可選） °F）
在任何位置安裝
繼電器報警和模擬輸出可選
的識別和flmh流量計可直接安裝在流體線無穩流器或特殊管道。彈簧及活塞式組裝使這些流量計可以安裝在任何位置和保護他們對粘度的變化。
的識別或可選的模擬輸出fmlh系列（馬）通常用于傳輸信號正比于流量的過程控制器，PLC，記錄儀，或面板安裝顯示。與馬的選項，用戶可以閱讀0到2000赫茲的方波脈沖之間選擇，0至5伏的模擬信號，或二線4到20毫安的模擬信號通過連接相應的引腳。

規格
Accuracy: ±2.5% FS in the center third of the measuring range; ±4% FS over the entire scale range
Repeatability: ±1%
Flow Measuring Range: 0.2 - 560 lpm (0.05 - 150 gpm)
Maximum Operating Pressure:
Aluminum and brass monitors: 3500 psig (240 Bar)
Stainless steel monitors: 6000 psig (410 Bar) up to 116°C (240°F)
Maximum Operating Temperature:
Standard Models: 116°C (240°F)
High Temp (-HT) Models: 204°C (400°F) max
Ultra High Temp (-UHT) Models: 316°C (600°F) max
Pressure Differential: download spec sheet for pressure drop graphs
Standard Calibration Fluids:
Oil monitors: DTE 25 @ 43°C (110°F), 0.873 sg
Water monitors: tap water @ 21°C (70°F), 1.0 sg
Maximum Particle Size: 76 microns
Relay (Optional): 1 or 2 form “C" relays, rated 10 A @ 125 or 250 Vac or 0.25 A @ 250 Vdc
Mechanical Life: >107 cycles
Analog Output (Optional): Supply voltage 12 to 35 Vdc, field selectable for 0 to 5 Vdc (100 W minimum load), 0 to 2000 Hz square-wave pulse or 4 to 20 mA; Rmax = 50 (Vs-12). Vs = supply voltage DC
Installation Dimensions:
1/4 and 1/2 NPT Sizes: 1-7/8 OD x 6.6" length
3/4 and 1 NPT Sizes: 2-3/8 OD x 7.2" length
1-1/4 and 1-1/2 NPT Sizes: 3-1/2 OD x 10.1" length
Materials of Construction (Wetted Parts)
Description Aluminum
(Not for Water) Brass Stainless Steel
High pressure casing, end ports and tapered shaft Aluminum Brass 304 SS
Seals Buna (std), EPR, FKM or perfluoroelastomer Buna (std), EPR, FKM or perfluoroelastomer FKM with PTFE backup (std) Buna, EPR or perfluoroelastomer
Transfer Magnet PTFE-coated Alnico PTFE-coated Alnico PTFE-coated Alnico
Floating Orifice Disk Stainless Steel Stainless Steel Stainless Steel
All Other Internal Parts Stainless Steel Stainless Steel Stainless Steel
Materials of Construction (Non-Wetted Components)
Description Aluminum Brass Stainless Steel
Window Tube Polycarbonate (std), Pyrex? Polycarbonate (std), Pyrex? Polycarbonate (std), Pyrex?
Window Seals Buna (std), PTFE Buna (std), PTFE Buna (std), PTFE
Examples of popular models in the "To Order" box. Use the "Part Number Builder" to get
pricing for many other available models.

產品型號/產品描述
Oil Flowmeters, 1/4 NPT
FLMH-1401AL 1 GPM, 1/4 NPT, aluminum
FLMH-1401BR 1 GPM, 1/4 NPT, brass
FLMH-1401SS 1 GPM , 1/4 NPT, 304 SS
FLMH-1402AL 2 GPM, 1/4 NPT, aluminum
FLMH-1402BR 2 GPM, 1/4 NPT, brass
FLMH-1402SS 2 GPM, 1/4 NPT, 304 SS
FLMH-1405AL  5 GPM, 1/4 NPT, aluminum
FLMH-1405BR  5 GPM, 1/4 NPT, brass
FLMH-1405SS  5 GPM, 1/4 NPT, 304 SS
FLMH-1410AL  10 GPM, 1/4 NPT, aluminum
FLMH-1410BR  10 GPM, 1/4 NPT, brass
FLMH-1410SS  10 GPM, 1/4 NPT, 304 SS
FLMH-1415AL  15 GPM, 1/4 NPT, aluminum
FLMH-1415BR  15 GPM, 1/4 NPT, brass
FLMH-1415SS  15 GPM, 1/4 NPT, 304 SS
Oil Flowmeters, 3/8 NPT
FLMH-3801AL 1 GPM, 3/8 NPT, aluminum
FLMH-3801BR 1 GPM, 3/8 NPT, brass
FLMH-3801SS 1 GPM, 3/8 NPT, 304 SS
FLMH-3802AL 2 GPM, 3/8 NPT, aluminum
FLMH-3802BR 2 GPM, 3/8 NPT, brass
FLMH-3802SS 2 GPM, 3/8 NPT, 304 SS
FLMH-3805AL  5 GPM, 3/8 NPT, aluminum
FLMH-3805BR  5 GPM, 3/8 NPT, brass
FLMH-3805SS  5 GPM, 3/8 NPT, 304 SS
FLMH-3810AL  10 GPM, 3/8 NPT, aluminum
FLMH-3810BR  10 GPM, 3/8 NPT, brass
FLMH-3810SS  10 GPM, 3/8 NPT, 304 SS
FLMH-3815AL  15 GPM, 3/8 NPT, aluminum
FLMH-3815BR  15 GPM, 3/8 NPT, brass
FLMH-3815SS  15 GPM, 3/8 NPT, 304 SS
Oil Flowmeters, 1/2 NPT
FLMH-1201AL 1 GPM, 1/2 NPT, aluminum
FLMH-1201BR 1 GPM, 1/2 NPT, brass
FLMH-1201SS 1 GPM, 1/2 NPT, 304 SS
FLMH-1202AL 2 GPM, 1/2 NPT, aluminum
FLMH-1202BR 2 GPM, 1/2 NPT, brass
FLMH-1202SS 2 GPM, 1/2 NPT, 304 SS
FLMH-1205BR  5 GPM, 1/2 NPT, brass
FLMH-1205SS  5 GPM, 1/2 NPT, 304 SS
FLMH-1210AL  10 GPM, 1/2 NPT, aluminum
FLMH-1210BR  10 GPM, 1/2 NPT, brass
FLMH-1210SS  10 GPM, 1/2 NPT, 304SS
FLMH-1215AL  15 GPM, 1/2 NPT, aluminum
FLMH-1215BR  15 GPM, 1/2 NPT, brass
FLMH-1215SS  15 GPM, 1/2 NPT, 304 SS
Oil Flowmeters, 3/4 NPT
FLMH-3402AL 2 GPM, 3/4 NPT, aluminum
FLMH-3402BR 2 GPM, 3/4 NPT, brass
FLMH-3402SS 2 GPM, 3/4 NPT, 304 SS
FLMH-3405AL 5 GPM, 3/4 NPT, aluminum
FLMH-3405BR 5 GPM, 3/4 NPT, brass
FLMH-3405SS 5 GPM, 3/4 NPT, 304SS
FLMH-3410AL  10 GPM, 3/4 NPT, aluminum
FLMH-3410BR  10 GPM, 3/4 NPT, brass
FLMH-3410SS  10 GPM, 3/4 NPT, 304 SS
FLMH-3415AL  15 GPM, 3/4 NPT, aluminum
FLMH-3415BR  15 GPM, 3/4 NPT, brass
FLMH-3415SS  15 GPM, 3/4 NPT, 304 SS
FLMH-3420AL  20 GPM, 3/4 NPT, aluminum
FLMH-3420BR  20 GPM, 3/4 NPT, brass
FLMH-3420SS  20 GPM, 3/4 NPT, 304 SS
FLMH-3425AL 25 GPM, 3/4 NPT, aluminum
FLMH-3425BR 25 GPM, 3/4 NPT, brass
FLMH-3425SS 25 GPM, 3/4 NPT, 304 SS
FLMH-3430AL  30 GPM, 3/4 NPT, aluminum
FLMH-3430BR  30 GPM, 3/4 NPT, brass
FLMH-3430SS  30 GPM, 3/4 NPT, 304 SS
FLMH-3440AL 40 GPM, 3/4 NPT, aluminum
FLMH-3440BR 40 GPM, 3/4 NPT, brass
FLMH-3440SS 40 GPM, 3/4 NPT, 304 SS
Oil Flowmeters, 1 NPT
FLMH-1002AL 2 GPM, 1 NPT, aluminum
FLMH-1002BR 2 GPM, 1 NPT, brass
FLMH-1002SS 2 GPM, 1 NPT, 304 SS
FLMH-1005AL 5 GPM, 1 NPT, aluminum
FLMH-1005BR 5 GPM, 1 NPT, brass
FLMH-1005SS 5 GPM, 1 NPT, 304 SS
FLMH-1010AL  10 GPM, 1 NPT, aluminum
FLMH-1010BR  10 GPM, 1 NPT, brass
FLMH-1015AL  15 GPM, 1 NPT, aluminum
FLMH-1015BR  15 GPM, 1 NPT, brass
FLMH-1015SS  15 GPM, 1 NPT 304 SS
FLMH-1015SS  15 GPM, 1 NPT, 304 SS
FLMH-1020AL  20 GPM, 1 NPT, aluminum
FLMH-1020BR  20 GPM, 1 NPT, brass
FLMH-1020SS  20 GPM, 1 NPT, 304 SS
FLMH-1025AL 25 GPM, 1 NPT, aluminum
FLMH-1025BR 25 GPM, 1 NPT, brass
FLMH-1025SS 25 GPM, 1 NPT, 304 SS
FLMH-1030AL  30 GPM, 1 NPT, aluminum
FLMH-1030BR  30 GPM, 1 NPT, brass
FLMH-1030SS  30 GPM, 1 NPT, 304 SS
FLMH-1040AL 40 GPM, 1 NPT, aluminum
FLMH-1040BR 40 GPM, 1 NPT, brass
FLMH-1040SS 40 GPM, 1 NPT, 304 SS
Oil Flowmeters, 1-1/4 NPT
FLMH-114025AL 25 GPM, 1-1/4 NPT, aluminum
FLMH-114025BR 25 GPM, 1-1/4 NPT, brass
FLMH-114025SS 25 GPM, 1-1/4 NPT, 304 SS
FLMH-114050AL  50 GPM, 1-1/4 NPT, aluminum
FLMH-114050BR  50 GPM, 1-1/4 NPT, brass
FLMH-114050SS  50 GPM, 1-1/4 NPT, 304 SS
FLMH-114075AL  75 GPM, 1-1/4 NPT, aluminum
FLMH-114075BR  75 GPM, 1-1/4 NPT, brass
FLMH-114075SS  75 GPM, 1-1/4 NPT, 304 SS
FLMH-114100AL  100 GPM, 1-1/4 NPT, aluminum
FLMH-114100BR  100 GPM, 1-1/4 NPT, brass
FLMH-114100SS  100 GPM, 1-1/4 NPT, 304 SS
FLMH-114150AL 150 GPM, 1-1/4 NPT, aluminum
FLMH-114150BR 150 GPM, 1-1/4 NPT, brass
FLMH-114150SS 150 GPM, 1-1/4 NPT, 304 SS
Oil Flowmeters, 1-1/2 NPT
FLMH-112025AL 25 GPM, 1-1/2 NPT, aluminum
FLMH-112025BR 25 GPM, 1-1/2 NPT, brass
FLMH-112025SS 25 GPM, 1-1/2 NPT, 304 SS
FLMH-112050AL  50 GPM, 1-1/2 NPT, aluminum
FLMH-112050BR  50 GPM, 1-1/2 NPT, brass
FLMH-112050SS  50 GPM, 1-1/2 NPT, 304 SS
FLMH-112075AL  75 GPM, 1-1/2 NPT, aluminum
FLMH-112075BR  75 GPM, 1-1/2 NPT, brass
FLMH-112075SS  75 GPM, 1-1/2 NPT, 304 SS
FLMH-112100AL  100 GPM, 1-1/2 NPT, aluminum
FLMH-112100BR  100 GPM, 1-1/2 NPT, brass
FLMH-112100SS  100 GPM, 1-1/2 NPT, 304 SS
FLMH-112150AL 150 GPM, 1-1/2 NPT, aluminum
FLMH-112150SS 150 GPM, 1-1/2 NPT, 304 SS
FLMH-112150BR 150 GPM, 1-1/2 NPT, brass
Water Flowmeters, 1/4 NPT
FLMW-1401BR 1 GPM, 1/4 NPT, brass
FLMW-1401SS 1 GPM 1/4 NPT 304SS
FLMW-1402BR 2 GPM, 1/4 NPT, brass
FLMW-1402SS 2 GPM, 1/4 NPT, 304SS
FLMW-1405BR  5 GPM, 1/4 NPT, brass
FLMW-1405SS  5 GPM, 1/4 NPT, 304 SS
FLMW-1410BR  10 GPM, 1/4 NPT, brass
FLMW-1410SS  10 GPM, 1/4 NPT, 304 SS
FLMW-1415BR  15 GPM, 1/4 NPT, brass
FLMW-1415SS  15 GPM, 1/4 NPT 304 SS
Water Flowmeters, 3/8 NPT
FLMW-3801BR 1 GPM, 3/8 NPT, brass
FLMW-3801SS 1 GPM, 3/8 NPT, 304 SS
FLMW-3802BR 2 GPM, 3/8 NPT, brass
FLMW-3802SS 2 GPM, 3/8 NPT, 304 SS
FLMW-3805BR  5 GPM, 3/8 NPT, brass
FLMW-3805SS  5 GPM, 3/8 NPT, 304 SS
FLMW-3810BR  10 GPM, 3/8 NPT, brass
FLMW-3810SS  10 GPM, 3/8 NPT, 304 SS
FLMW-3815BR  15 GPM, 3/8 NPT, brass
FLMW-3815SS  15 GPM, 3/8 NPT, 304 SS
Water Flowmeters, 1/2 NPT
FLMW-1201BR 1 GPM, 1/2 NPT, brass
FLMW-1201SS 1 GPM, 1/2 NPT, 304 SS
FLMW-1202BR 2 GPM, 1/2 NPT, brass
FLMW-1202SS 2 GPM, 1/2 NPT, 304 SS
FLMW-1205BR  5 GPM, 1/2 NPT, brass
FLMW-1205SS  5 GPM, 1/2 NPT, 304SS
FLMW-1210BR  10 GPM, 1/2 NPT, brass
FLMW-1210SS  10 GPM, 1/2 NPT, 304 SS
FLMW-1215BR  15 GPM, 1/2 NPT, brass
FLMW-1215SS  15 GPM, 1/2 NPT, 304 SS
Water Flowmeters, 3/4 NPT
FLMW-3402BR 2 GPM, 3/4 NPT, brass
FLMW-3402SS 2 GPM, 3/4 NPT, 304 SS
FLMW-3405BR 5 GPM, 3/4 NPT, brass
FLMW-3405SS 5 GPM, 3/4 NPT, 304 SS
FLMW-3410BR  10 GPM, 3/4 NPT, brass
FLMW-3410SS  10 GPM, 3/4 NPT, 304 SS
FLMW-3415BR  15 GPM, 3/4 NPT, brass
FLMW-3415SS  15 GPM, 3/4 NPT, 304 SS
FLMW-3420BR  20 GPM, 3/4 NPT, brass
FLMW-3420SS  20 GPM, 3/4 NPT, 304 SS
FLMW-3425BR 25 GPM, 3/4 NPT, brass
FLMW-3425SS 25 GPM, 3/4 NPT, 304 SS
FLMW-3430BR  30 GPM, 3/4 NPT, brass
FLMW-3430SS  30 GPM, 3/4 NPT, 304 SS
FLMW-3440BR 40 GPM, 3/4 NPT, brass
FLMW-3440SS 40 GPM, 3/4 NPT, 304 SS
Water Flowmeters, 1 NPT
FLMW-1002BR 2 GPM, 1 NPT, brass
FLMW-1002SS 2 GPM, 1 NPT, 304 SS
FLMW-1005BR 5 GPM, 1 NPT, brass
FLMW-1005SS 5 GPM, 1 NPT, 304 SS
FLMW-1010BR  10 GPM, 1 NPT, brass
FLMW-1010SS  10 GPM, 1 NPT, 304 SS
FLMW-1015BR  15 GPM, 1 NPT, brass
FLMW-1015SS  15 GPM, 1 NPT, 304 SS
FLMW-1020BR  20 GPM, 1 NPT, brass
FLMW-1020SS  20 GPM, 1 NPT, 304 SS
FLMW-1025BR 25 GPM, 1 NPT, brass
FLMW-1025SS 25 GPM, 1 NPT, 304 SS
FLMW-1030BR  30 gpm, 1 npt, brass
FLMW-1030SS  30 GPM, 1 NPT, 304 SS
FLMW-1040BR 40 GPM, 1 NPT, brass
FLMW-1040SS 40 GPM, 1 NPT, 304 SS
Water Flowmeters, 1-1/4 NPT
FLMW-114025BR 25 GPM, 1-1/4 NPT, brass
FLMW-114025SS 25 GPM, 1-1/4 NPT, 304 SS
FLMW-114050BR  50 GPM, 1-1/4 NPT, brass
FLMW-114050SS  50 GPM, 1-1/4 NPT, 304 SS
FLMW-114075BR  75 GPM, 1-1/4 NPT, brass
FLMW-114075SS  75 GPM, 1-1/4 NPT, 304 SS
FLMW-114100BR  100 GPM, 1-1/4 NPT, brass
FLMW-114100SS  100 GPM, 1-1/4 NPT, 304 SS
FLMW-114150BR 150 GPM, 1-1/4 NPT, brass
FLMW-114150SS 150 GPM, 1-1/4 NPT, 304 SS
Water Flowmeters, 1-1/2 NPT
FLMW-112025BR 25 GPM, 1-1/2 NPT, brass
FLMW-112025SS 25 GPM, 1-1/2 NPT, 304 SS
FLMW-112050BR  50 GPM, 1-1/2 NPT, brass
FLMW-112050SS  50 GPM, 1-1/2 NPT, 304 SS
FLMW-112075BR  75 GPM, 1-1/2 NPT, brass
FLMW-112075SS  75 GPM, 1-1/2 NPT, 304 SS
FLMW-112100BR  100 GPM, 1-1/2 NPT, brass
FLMW-112100SS  100 GPM, 1-1/2 NPT, 304 SS
FLMW-112150BR 150 GPM, 1-1/2 NPT, brass
FLMW-112150SS 150 GPM, 1-1/2 NPT, 304 SS


注釋: Comes complete with operator’s manual.
For operation up to 400°F, add suffix "-HT" to model number.
For operation up to 600°F, add suffix "-UHT" to model number.
For units with one 10 A @220 Vac Form C relay, add suffix "-R1" to model number.
For two 10 A @220 Vac Form C relays, add suffix "-R2" to model number.
For units with 4 to 20 mA output powered by 12 to 35 Vdc, add suffix "-MA" to model number.
For Bi-Directional Flow, add suffix "-BDF " to model number.
"-BDF " option not available in combination with "-UHT","-R1", "-R2", or "-MA", or on models with 1-1/2" port size. Not all sizes available with Bi-Directional Flow, only those sizes marked with  are available with the Bi-Direction Flow option.
Only one option may be ordered with each unit.
For NIST traceable certificate, add suffix "-NIST" to model number, add $250 to price.
Please use the Part Number Builder below to specify exact model, and to determine price.

產品型號說明：
(1) (2) (3) (4) (5) -
選項描述
(1) Model
選擇
FLMH 代表 Oil Flowmeters
FLMW 代表 Water Flowmeters
(2) NPT
選擇
14 代表 1/4 in.
38 代表 3/8 in.
12 代表 1/2 in.
34 代表 3/4 in.
10 代表 1 in.
114 代表 1 1/4 in.
112 代表 1 1/2 in.
(3) Max. Rate GPM
選擇
01 代表 1 GPM
02 代表 2 GPM
05 代表 5 GPM
10 代表 10 GPM
15 代表 15 GPM
20 代表 20 GPM
25 代表 25 GPM
30 代表 30 GPM
40 代表 40 GPM
50 代表 50 GPM
75 代表 75 GPM
100 代表 100 GPM
150 代表 150 GPM
(4) Material
選擇
AL 代表 Aluminum
BR 代表 Brass
SS 代表 Stainless Steel
(5) Option
選擇
Nothing(leave field blank) 代表 None
-HT 代表 Operation up to 400°F
-UHT 代表 Operation up to 600°F
-R1 代表 Units with one 10 A @220 Vac Form C relay
-R2 代表 Units with two 10 A @220 Vac Form C relay
-MA 代表 Units with 4-20 mA output powered by 12-35 Vdc


FLMH-1415AL流量計 美國omega

FLMG-38012BR流量計 美國omega
